State Machine

The BP_StateMachine is a UObject-derived Blueprint class within the State Manager System for Unreal Engine 5, extending BP_BaseState to serve as a centralized finite state machine (FSM) for managing state transitions in Action RPGs. It enables developers to define complex transition logic between states for actors, such as characters or AI, in response to events or inputs. The class addresses the need for modular, scalable state management, particularly for advanced AI behaviors or dynamic player states, ensuring seamless integration with the BP_StateManagerComponent.

Basic Usage

This section outlines how to use BP_StateMachine to manage state transitions within the State Manager System. The following functions, inherited from BP_BaseState and extended for FSM functionality, are essential for interacting with state machines.

1. CanEnterState:

   • Purpose: Checks if the state machine can be entered as a state, typically used for initialization conditions.
   • Usage: Override in a custom BP_StateMachine to enforce entry requirements, returning a boolean.
   • Example: Ensure the actor is valid before entering the state machine.

2. EnterState:

   • Purpose: Executes logic when the state machine is entered, such as initializing the FSM.
   • Usage: Override in a custom BP_StateMachine to set up initial states or conditions.
   • Example: Set the initial state to State.Idle.

3. EndState:

   • Purpose: Executes cleanup logic when the state machine is exited.
   • Usage: Override in a custom BP_StateMachine to reset FSM-related data.
   • Example: Clear active state references.

4. Run State Machine:

   • Purpose: Executes transition logic to switch between states based on events or conditions.
   • Usage: Override in a custom BP_StateMachine to define FSM transitions.
   • Example: Transition from State.Patrol to State.Chase on enemy detection.

5. Get State Time:

   • Purpose: Returns the duration the state machine has been active, if bTrackStateActiveTime is enabled.
   • Usage: Call in Blueprints to query FSM duration for timed transitions.
   • Example: Transition after 5 seconds in State.Idle.

Key Properties

Property Name	Purpose
State Tag	Gameplay Tag identifying the state machine (e.g., StateMachine.Combat), used for triggering or referencing the FSM.
bTrackStateActiveTime	If true, tracks the active duration of the state machine, accessible via Get State Time.

Key Concepts

Centralized State Transitions

The BP_StateMachine acts as a central hub for managing transitions between multiple states, unlike BP_BaseState, which focuses on individual state logic. This concept enables developers to define complex FSMs, such as AI behaviors, in a single class, streamlining state management.

• Purpose: Consolidates transition logic for multiple states.
• Usage: Override Run State Machine to handle transitions based on events or conditions.
• Benefit: Simplifies maintenance of complex state-driven systems.

Event-Driven Transitions

The BP_StateMachine responds to events sent via Send Event To State Machine in BP_StateManagerComponent, allowing dynamic state changes. This concept is key for reacting to gameplay events, such as player inputs or AI triggers.

• Purpose: Enables state transitions based on external events.
• Usage: Use Send Event To State Machine with EventTag values and process them in Run State Machine.
• Benefit: Enhances responsiveness to gameplay changes.

Modular AI Behavior

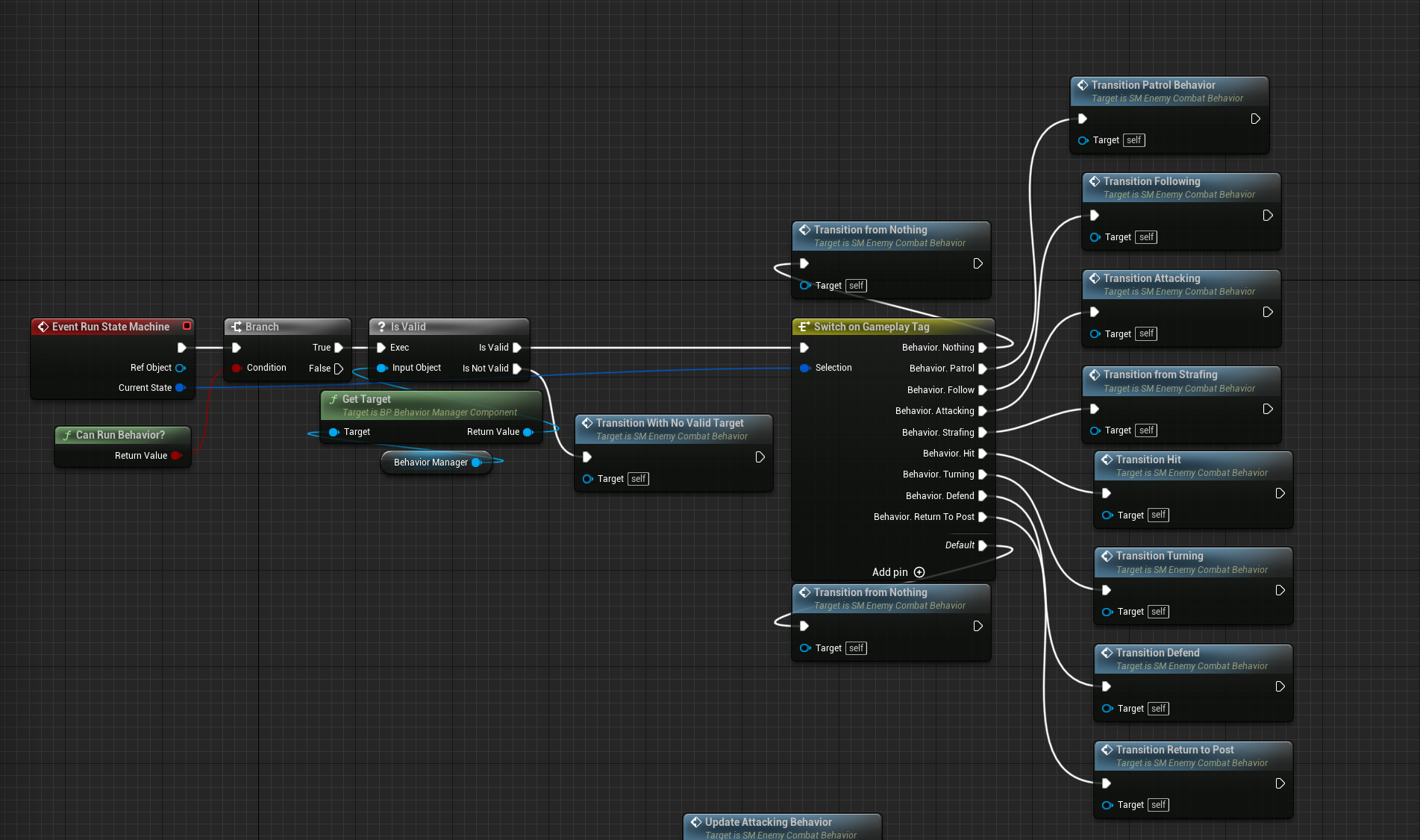

The BP_StateMachine is particularly suited for defining modular AI behaviors, such as boss or enemy FSMs, by managing states like patrolling, attacking, or retreating. This concept supports scalable AI development within the State Manager System.

• Purpose: Facilitates complex AI behavior through FSM transitions.
• Usage: Create a BP_StateMachine for AI, overriding Run State Machine to define state transitions.
• Benefit: Streamlines creation of advanced, reusable AI logic.

Time-Based Transitions

The bTrackStateActiveTime property and Get State Time function enable time-based transitions within the FSM, such as switching states after a set duration. This concept supports timed behaviors, like delays between AI actions.

• Purpose: Allows transitions based on FSM active duration.
• Usage: Enable bTrackStateActiveTime and use Get State Time in Run State Machine.
• Benefit: Simplifies implementation of time-driven state changes.

Hierarchical FSM Design

Complex behaviors can be built by chaining or nesting state machines:

• A top-level AI behavior machine
• Sub-states for movement, alert, idle
• Triggering sub-state machines from parent state logic

→ Run Sub-StateMachine By Tag (e.g., "AI.Alert")

AI Behavior Example

BP_StateMachine is ideal for AI, as shown in the default BP_AIBehaviorStateMachine. It manages transitions (e.g., State.Idle to State.Pursue) based on inputs like enemy detection.

• Usage: Modify Run State Machine for AI behavior:

Run State Machine -> Has Input Atom (InputAtomTag: Input.EnemyDetected) -> Branch (True) -> Enter State By Tag (StateTag: State.Pursue)

Best Practices

• Workflows:
  • Use hierarchical State Tag names (e.g., StateMachine.AI.Behavior) for clarity.
  • Test transitions with demo BP_StateMachine assets before creating custom ones.
  • Use Send Event To State Machine for dynamic triggers rather than constant polling.
• Pitfalls to Avoid:
  • Don’t overload Run State Machine with excessive logic; keep transitions concise.
  • Avoid duplicating State Tag values across state machines to prevent conflicts.
  • Don’t call Run State Machine every frame unless necessary; use event-driven calls.
• Performance Considerations:
  • Disable bTrackStateActiveTime for state machines not requiring time tracking.
  • Optimize Gameplay Tag checks in Run State Machine to avoid performance hits.
